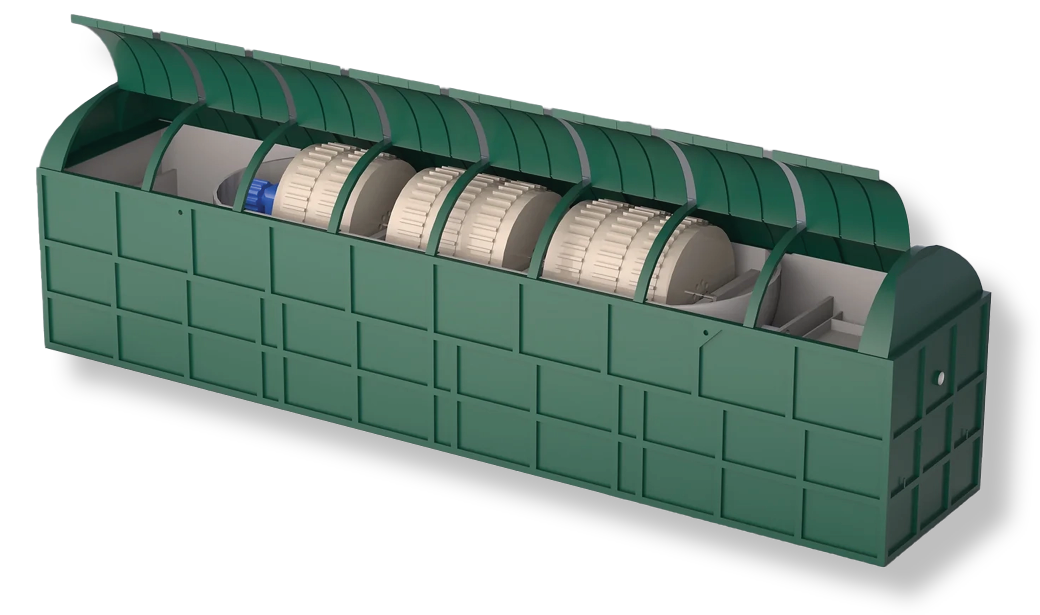

BMS Blivet™
The Next Generation RBC
PACKAGE SEWAGE TREATMENT PLANT
The BMS Blivet™ stands out as a cutting-edge sewage treatment system, celebrated for its efficiency, reliability, and versatility.
This innovative unit caters to a wide range of applications — whether permanent, temporary, or emergency—delivering consistent high-quality treatment in diverse conditions. Key features include the advanced BMS Aerotor® for effective aerobic treatment, state-of-the-art Lamellae Plate Settlement Technology for optimal separation and treatment, and an extended sludge storage capacity minimizing maintenance needs.
With its Plug & Play technology, low power consumption, and modular expandability, the BMS Blivet™ offers a robust, scalable solution for modern wastewater management, ensuring seamless operation and enhanced security across varied environments.
KEY BENEFITS
The Aerobic Treatment
- Employs the advanced BMS Aerotor® for efficient, high-
performance sewage treatment.
Primary & Final Settlement
- Utilizes state-of-the-art Lamellae Plate Settlement Technology to ensure effective separation and treatment.
Plug Flow Design
- Guarantees an optimal and efficient treatment process, making every drop count.
Extended Sludge Storage
- Offers a minimum of 3 months’ storage capacity, reducing the frequency of maintenance.
Net Hydraulic Lift
- Outlet is 150mm higher than the inlet, ensuring at least 100mm of gravity flow with adjustable internal recirculation.
Robust and Reliable
- Built to deliver consistent and dependable performance, even in challenging conditions.
Versatile Installation
- Suitable for both above-ground and below-ground installations, featuring an all-purpose GRP steel-reinforced tank.
Compact and Containerized
- Designed to fit in a standard container, making transportation and setup a breeze.
Highly Portable
- Easily transported from site to site via truck or container, offering unparalleled mobility.
Ready to Use
- Delivered as a complete ‘ready to go’ solution with Plug & Play technology for immediate operation.
Minimal Maintenance
- Exceptionally easy to operate and maintain, requiring only ½ to 1 man-hour per week.
Low Power Consumption
- Operates with just 2 electromechanical components, consuming only 8 – 15 kWh/day.
Multi-Purpose Use
- Versatile enough for permanent, temporary, or emergency applications, adapting to your needs.
Modular Expandability
- Units can be easily expanded to meet growing demands, ensuring scalability.
Enhanced Security
- Lockdown covers provide added protection and safety, giving you peace of mind.
Operational Flexibility
- Can be operated in parallel or series to meet various effluent paramet
How Does the Blivet™ work?
The BMS Blivet™ employs a cutting-edge combination of lamellae plate settlement and advanced biological treatment through the next-generation BMS Aerotor® RBC/Biodisc. These processes are expertly integrated within a robust, steel-reinforced GRP/FRP tank, ensuring the efficient treatment of sewage to meet specified standards.
The lamellae plate settlement technology significantly enhances the separation of solids, while the BMS Aerotor® RBC/Biodisc facilitates superior biological treatment, breaking down organic matter with exceptional efficiency. This synergy of technologies allows the Blivet™ to deliver outstanding performance in a compact footprint.
For applications requiring higher levels of treatment, the system can be equipped with UV disinfection to produce water suitable for non-potable reuse, such as toilet flushing, wheel washing, and various industrial processes. This additional capability not only promotes sustainability but also maximizes the utility of treated water.
What Makes the Blivet Unique?
The BMS Blivet™ stands out as the most compact, fully prefabricated ‘all-in-one’ sewage treatment system on the market. An ‘all-in-one’ system should encompass complete prefabrication and ‘Plug & Play’ functionality, including primary and final settlement, advanced biological treatment, over 3 months of sludge storage, and portability. It must also be suitable for permanent or temporary use and transportable by road or container. The Blivet™ not only meets these criteria but exceeds them in numerous ways.
The BMS Blivet™ is engineered to deliver comprehensive sewage treatment in a single, preassembled unit. Its unique design integrates multiple treatment stages within one compact structure, ensuring efficient and effective processing while minimizing the system’s footprint. This makes it incredibly versatile and suitable for various settings, whether in dense urban environments or remote locations.
BMS Blivet™ process
(1) Primary Settlement Area (Lamella plates). (2) BMS Aerotor. (3) Recirculation Line (By gravity). (4) Final Settlement Area (Lamella Plates).
(5) Submersible Pump. (6) Motor. (7) Sludge Return Line.
Experience the Difference
The BMS Blivet™ integrates all these advanced features into a single, unique unit that is ready to transform your sewage treatment process. Whether you’re managing a permanent facility or a temporary setup, the BMS Blivet™ ensures optimal performance with minimal hassle.
Discover how the BMS Blivet™ can revolutionize your sewage treatment needs today.
HOW IT WORKS?
- Incoming Sewage
- Primary Settlement Area
- BMS AerotorTM
- Recirculation
- Final Settlement Area
NSAI Certified
ISO 9001:2015 & ISO 45001:2018
Made in Ireland
SELECTION GUIDE
| BLIVET™ MODEL | BLIVET™ DIMENSIONS (M) | 25/35 | 20/30 | 20/30/5 | 20/30/5/15 | 15/15 |
|---|---|---|---|---|---|---|
| BMS BL500 | 4.9 (L) x 2.93 (H) x 2.27 (W) | 62 | 50 | 30 | 30 | 45 |
| BMS BL1000 | 5.4 (L) x 2.93 (H) x 2.27 (W) | 125 | 100 | 65 | 65 | 90 |
| BMS BL1500 | 6.4 (L) x 2.93 (H) x 2.27 (W) | 188 | 150 | 100 | 100 | 135 |
| BMS BL2000 | 7.5 (L) x 2.93 (H) x 2.27 (W) | 250 | 200 | 135 | 135 | 180 |
| BMS BL3000 | 9.3 (L) x 2.93 (H) x 2.27 (W) | 312 | 250 | 170 | 170 | 225 |
| BMS BL3500 | 10.1 (L) x 2.93 (H) x 2.27 (W) | 406 | 325 | 220 | 220 | 295 |
| BMS BL4000 | 10.9 (L) x 2.93 (H) x 2.27 (W) | 500 | 400 | 270 | 270 | 360 |
Level of treatment – upper limit. Output Quality (24hr period)
Green = Biological Oxygen demand Red = Suspended Solids Blue = Ammonia Purple = Total Nitrogen
Phosphorus Reduction to 1 mg/L can be added to any of the above by downsizing the PE figures by 20% i.e. multiply the figures by 0.8.
All Calculations are based on 60g of BOD, 200L (max) of flow, 8 g of Nitrogen /1 person/day and on sewage flow (i.e. not combined sewerage). Other effluent standards are available on request. BMS Blivets can treat up to 5000 PE, extra capacity can be achieved by placing units in parallel or in series or a combination of both depending on the site requirements. Add 1 m to length when UV system is added at the outlet. This table is a guide only. Please contact Nova Process to confirm your selection.
